Getting started with paintr

Source: vignettes/paintr.qmd

paintr draws R’s data structures as teaching diagrams. This guide tours the five structures it can draw, the two backends it draws them with, and the arguments that shape each picture. Load the package to follow along.

What paintr draws

When you teach R, the hard part is rarely the arithmetic. It is helping someone see the shape of the thing they are working with, so they picture a vector as a row of boxes, a data frame as a stack of columns that happen to line up, and an array as a pile of matrices. paintr draws exactly those pictures.

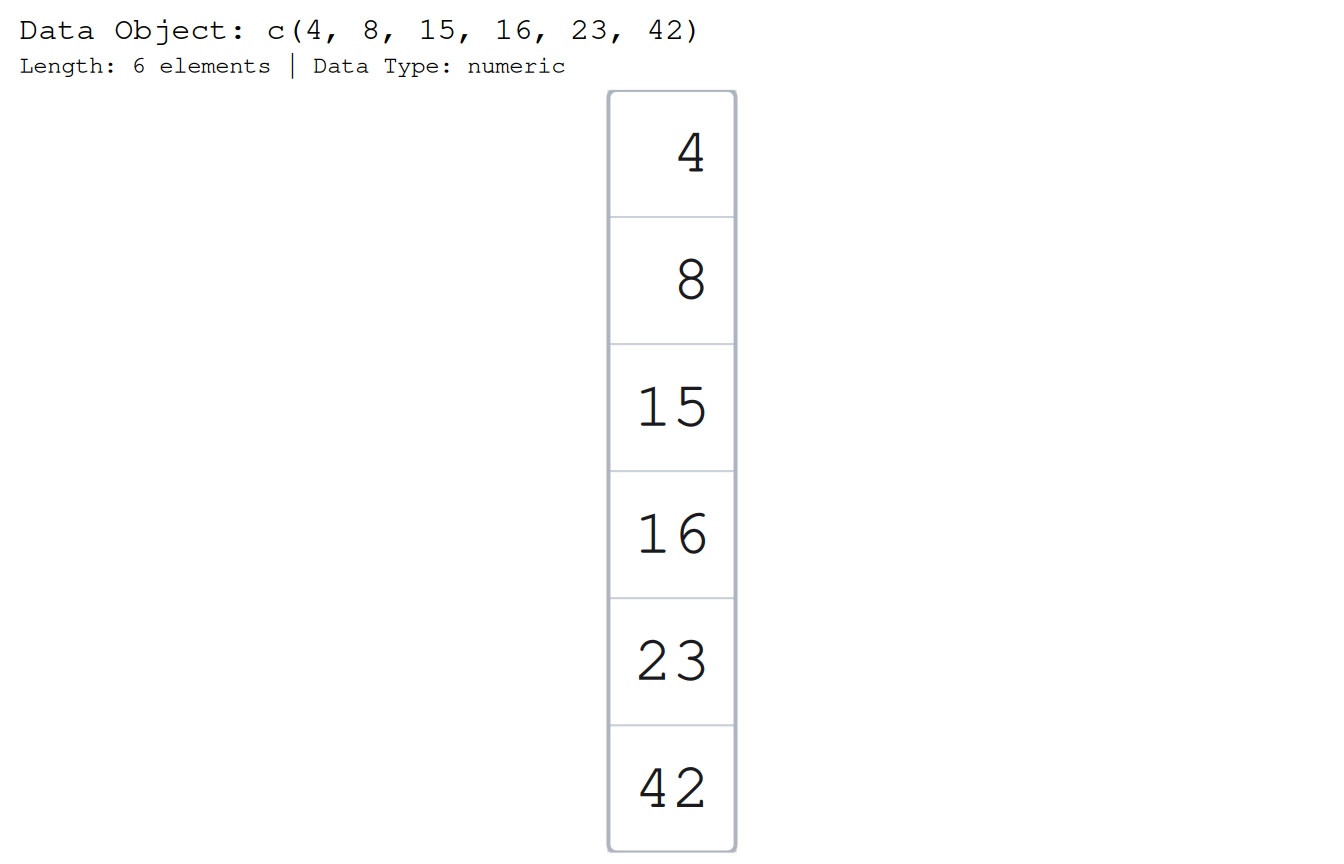

paint_vector(c(4, 8, 15, 16, 23, 42))

A numeric vector of six values, 4, 8, 15, 16, 23, and 42, drawn as a column of cells; under each cell is its positional accessor, [1] through [6], the expression you type to reach that value.

Every picture is the same idea. Each value sits in its own cell, and under each cell paintr writes the expression you would type to reach it. The label under the third box above is [3], because x[3] is how you would pull that value out. That is the whole teaching trick: the drawing and the code are the same object.

Two backends: paint_ and gpaint_

Every structure has two painters. The paint_*() functions draw in base graphics, straight to the device. The gpaint_*() functions return a ggplot object, so you can print it, save it with ggsave(), or drop it into a patchwork.

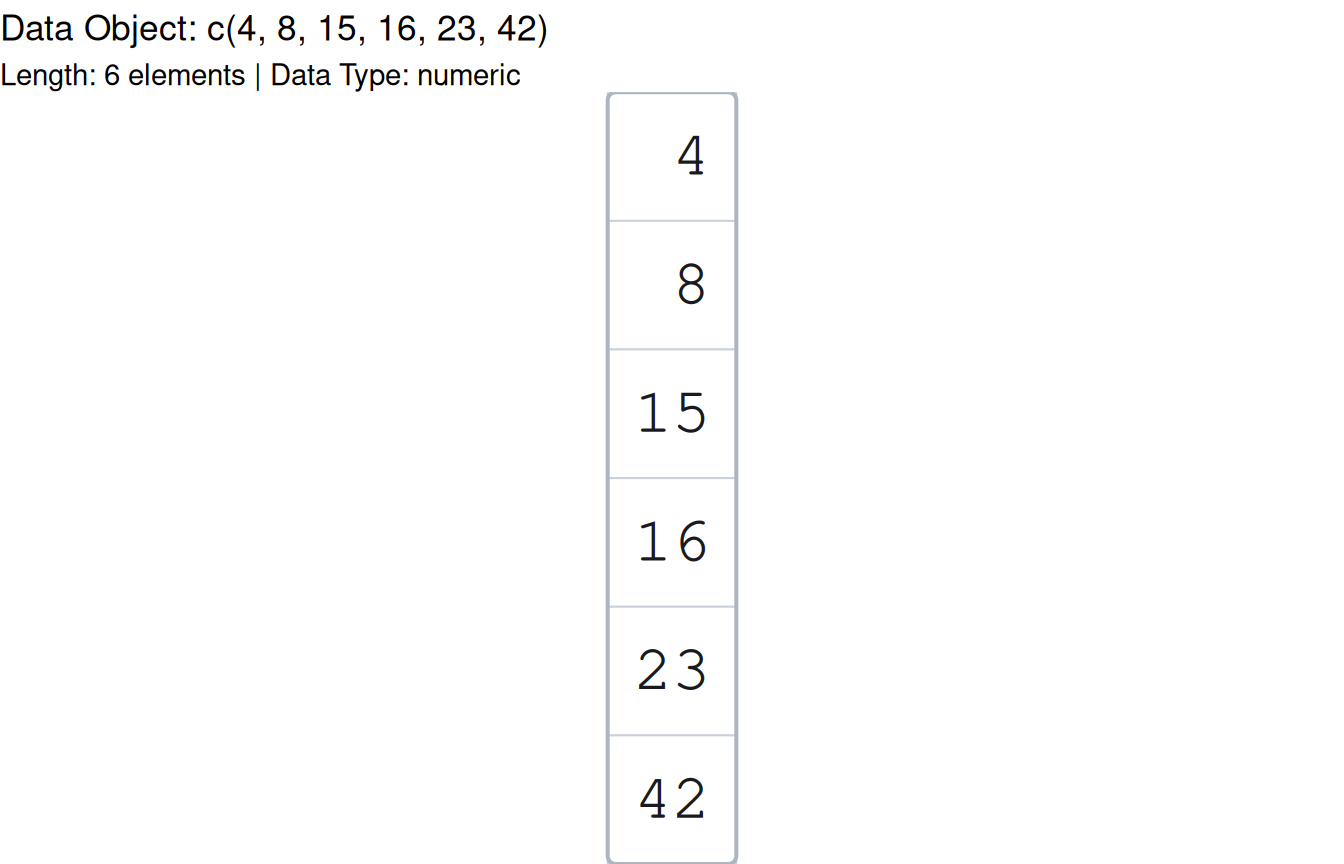

gpaint_vector(c(4, 8, 15, 16, 23, 42))

The same six values, 4, 8, 15, 16, 23, and 42, drawn as a column of cells with the accessors [1] through [6] beneath them, this time rendered as a ggplot object rather than base graphics; the picture is identical.

The two draw the same picture, with one difference in the ggplot version. Its panel is a single custom grob, not a layer of geoms. That is what lets paintr defer text fitting to draw time and paint the grey trailing digits you will see below, but it also means ggplot_build() sees an empty layer, and adding + scale_fill_*() has no effect. Reach for gpaint_*() when you want a ggplot in your hand, and paint_*() otherwise. The rest of this tour uses paint_*().

Vectors

A vector is a one-dimensional run of values, and that is how it draws.

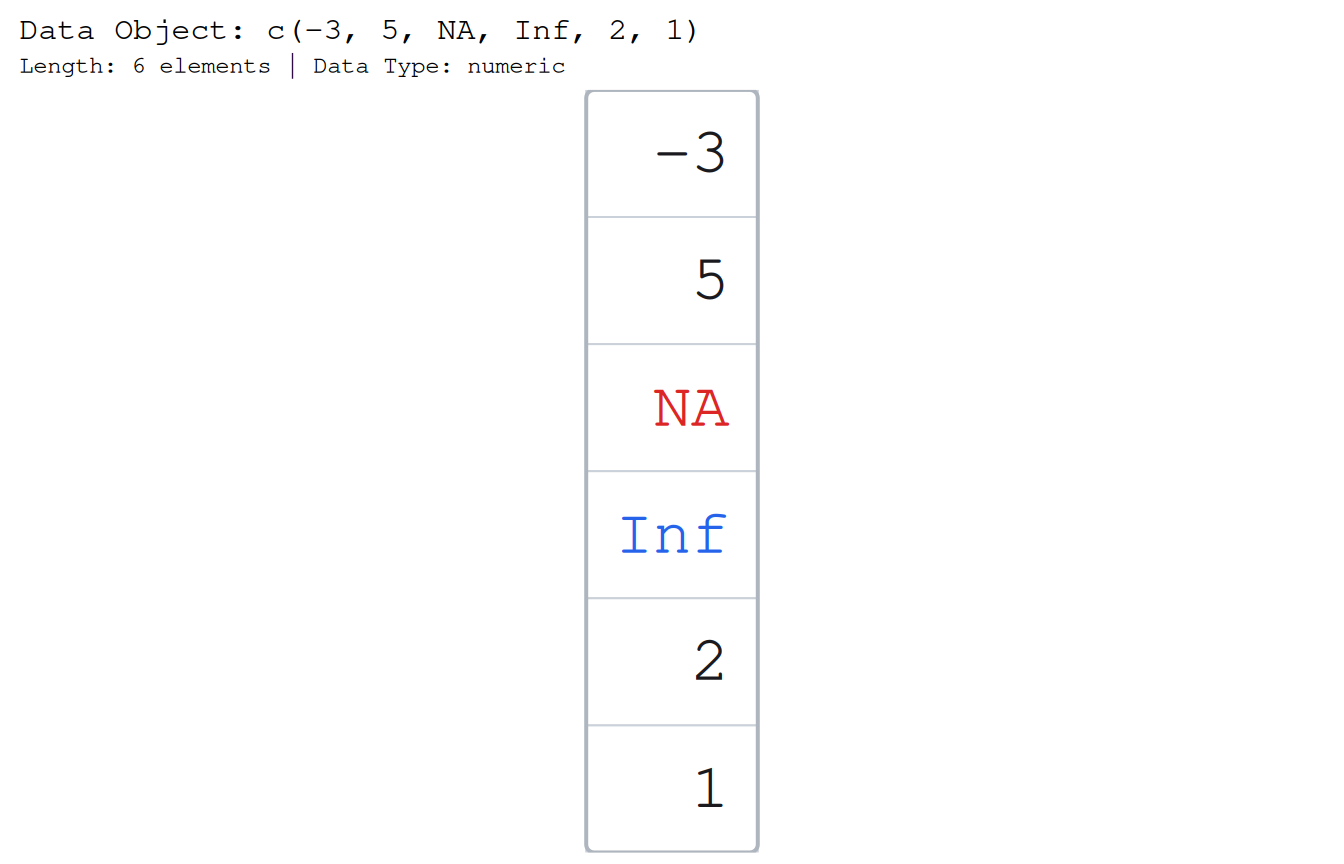

paint_vector(c(-3, 5, NA, Inf, 2, 1))

A numeric vector of six values drawn as a column of cells holding -3, 5, NA, Inf, 2, and 1; the missing value shows as NA and the infinite value as Inf, and each cell carries its positional accessor [1] through [6].

Two options earn their keep here. layout = "horizontal" turns the column on its side, and show_indices writes the position labels [1] [2] ... either "inside" each cell or "outside" the row.

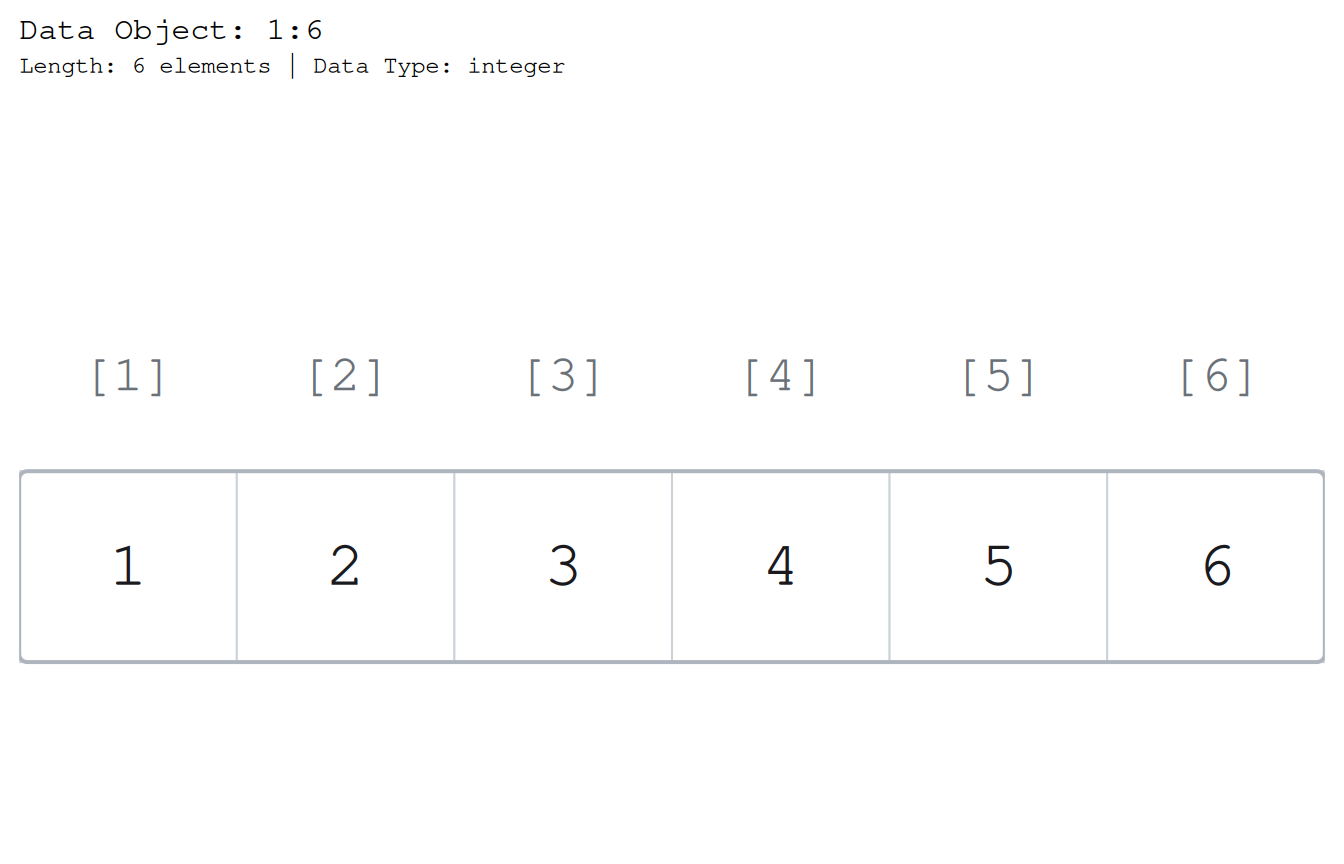

paint_vector(1:6, layout = "horizontal", show_indices = "outside")

The numbers 1 through 6 drawn as a single horizontal row of cells instead of a column, with the positional labels [1] through [6] printed outside the row beneath each cell.

Give the vector names and it draws each name as the accessor you would type, ["mon"] rather than a bare mon, because x["mon"] is how you reach the value. The through-line holds: the label under every cell is still exactly the expression you type. Set show_names = FALSE to fall back to [1] [2].

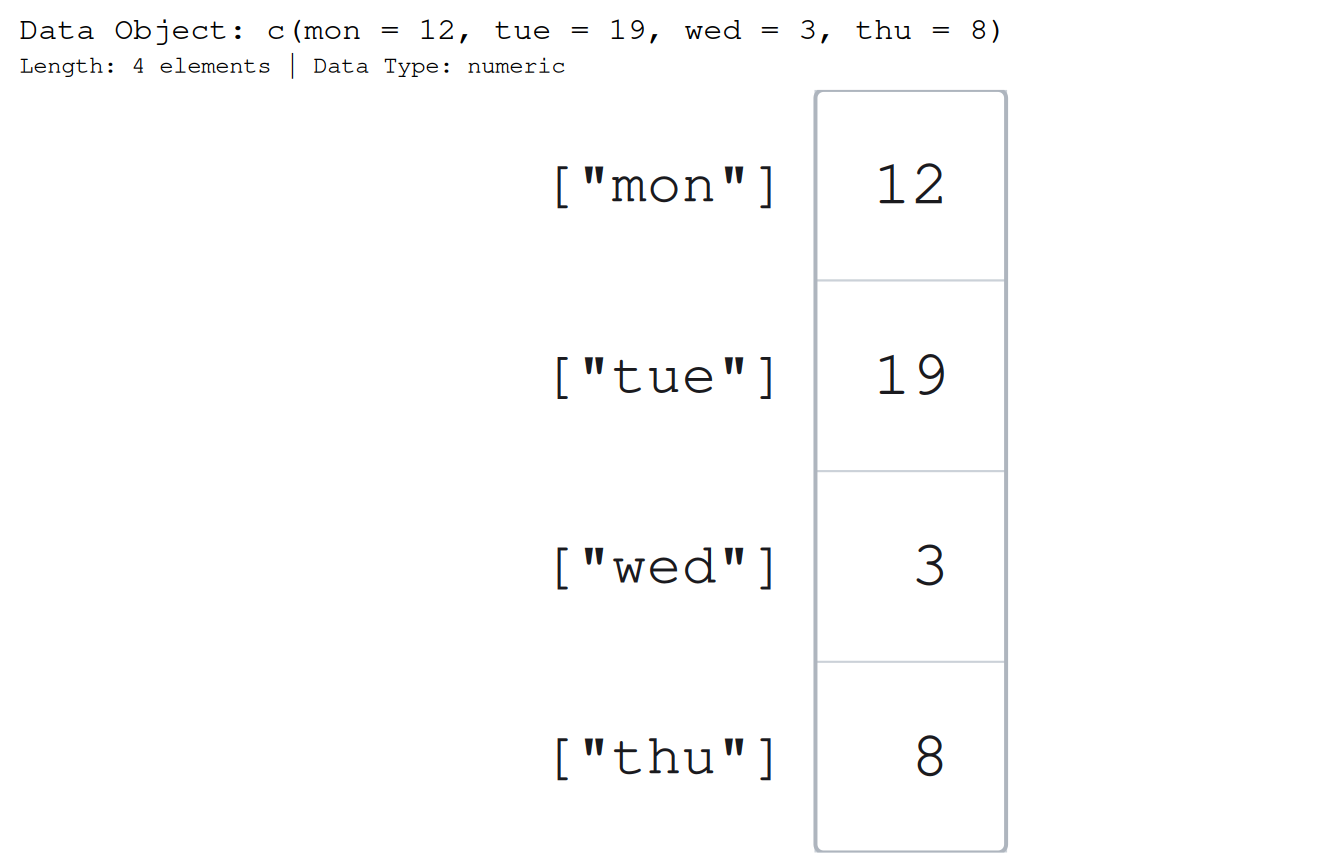

paint_vector(c(mon = 12, tue = 19, wed = 3, thu = 8))

A named numeric vector of four values, 12, 19, 3, and 8, drawn as a column of cells; each cell is labelled with its name as a character accessor, ["mon"], ["tue"], ["wed"], and ["thu"], the expression you type to reach that value.

Matrices

A matrix is a grid, so it draws as one. paint_matrix() also handles a 2-D array or a 2-D table.

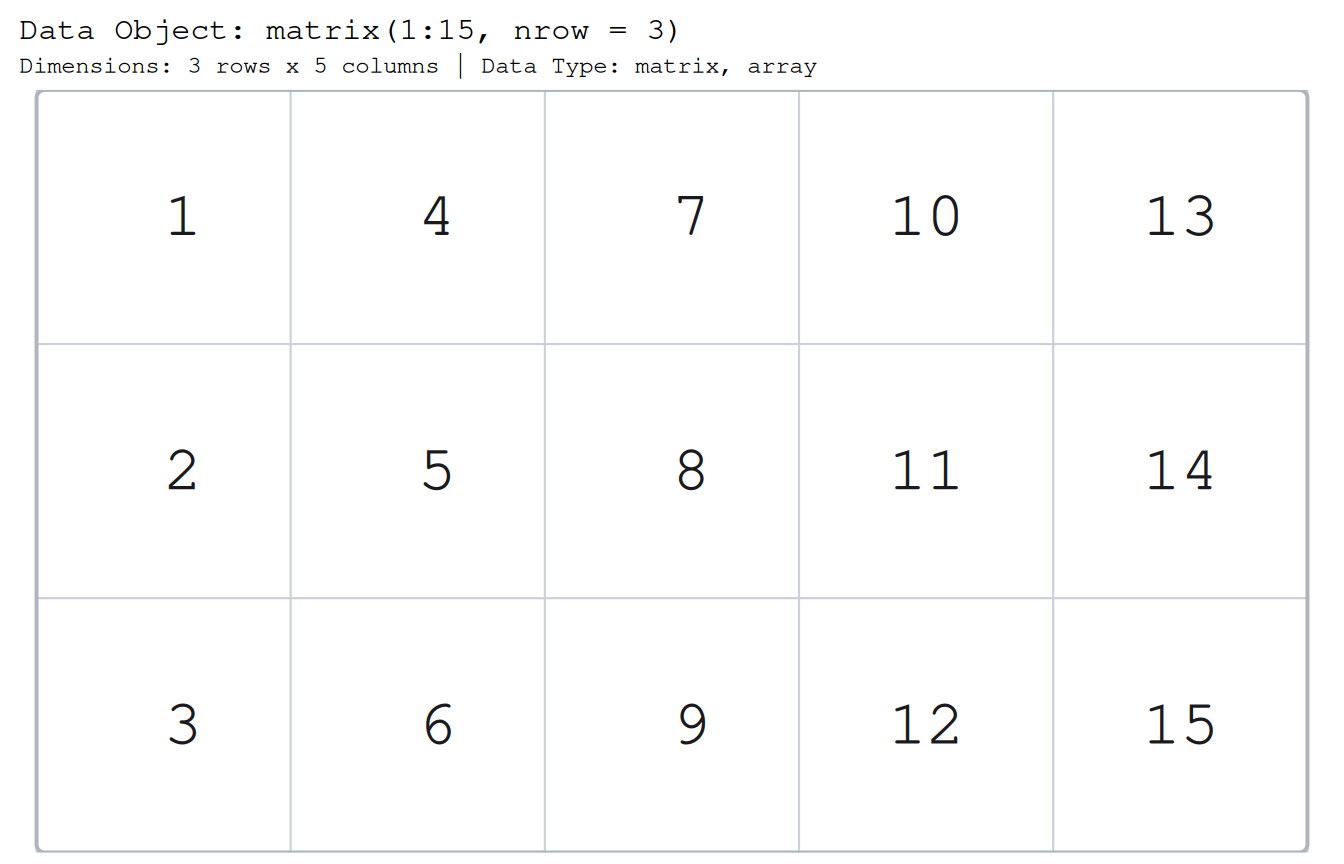

paint_matrix(matrix(1:15, nrow = 3))

The numbers 1 through 15 drawn as a 3 by 5 grid of cells filled column by column, so the first column reads 1, 2, 3 down and the last reads 13, 14, 15.

The one option you will reach for most is show_indices = "cell", which labels every cell with its [row, column] subscript. This is the picture that makes m[2, 4] finally click.

paint_matrix(matrix(1:15, nrow = 3), show_indices = "cell")

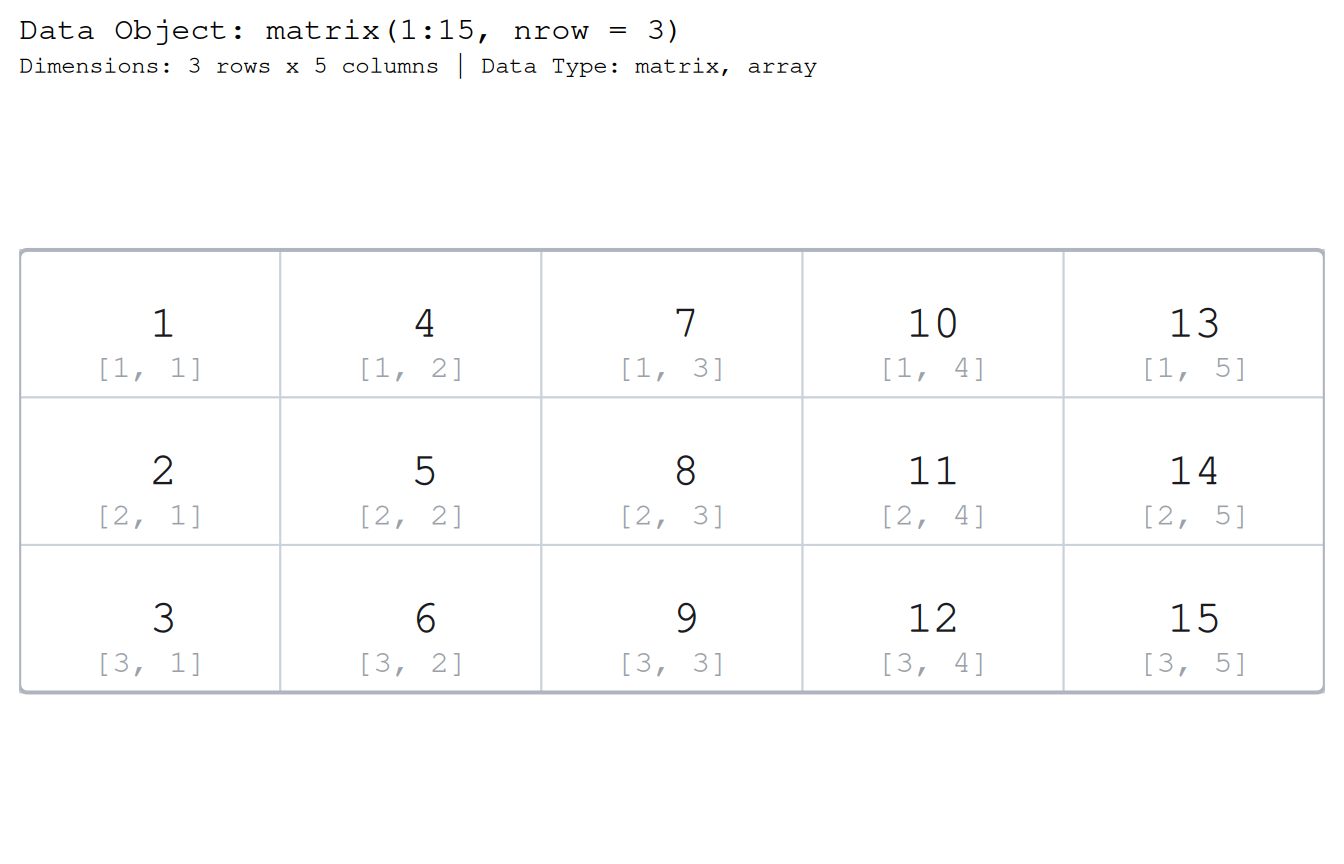

The same 3 by 5 grid of the numbers 1 through 15, now with each cell labelled by its [row, column] subscript, from [1, 1] in the top-left corner to [3, 5] in the bottom-right.

If the matrix has dimnames, they draw in the margins, and show_dimnames chooses which by taking a character vector over "none", "row", "column", and "all".

Data frames

A data frame is the workhorse, and it gets the richest default picture, with a header row of column names, the type of each column beneath it, and a row-name gutter whenever the row names are meaningful.

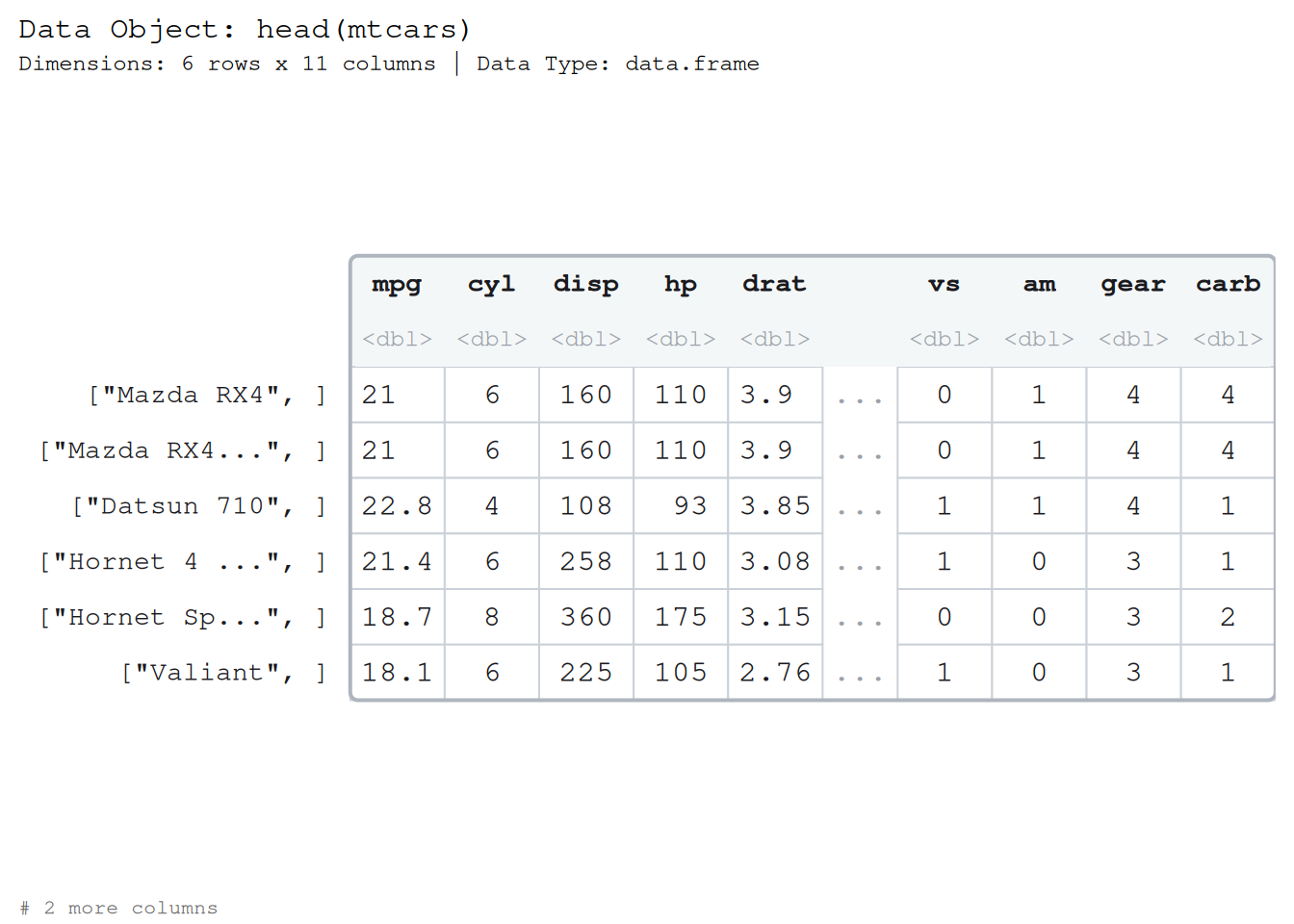

The first six rows of the mtcars data frame drawn as a table: a header row of bare column names such as mpg, cyl, and disp, the column type beneath each, and a row-name gutter down the left labelling each row as an accessor, ["Mazda RX4", ] through ["Valiant", ]; numbers show three significant figures with any trailing digits in grey.

Notice the numbers. paintr shows three significant figures by default, and draws any trailing insignificant digits in grey, so a reader can see the true value without being distracted by noise. mtcars has real row names, so the gutter appears, while a fresh iris would not draw one. Toggle the extra rows with show_names, show_types, and show_rownames. paint_df() is a shorter alias.

Lists

A list is the flexible container, and its elements can have different lengths and different types. paintr draws each element as a column.

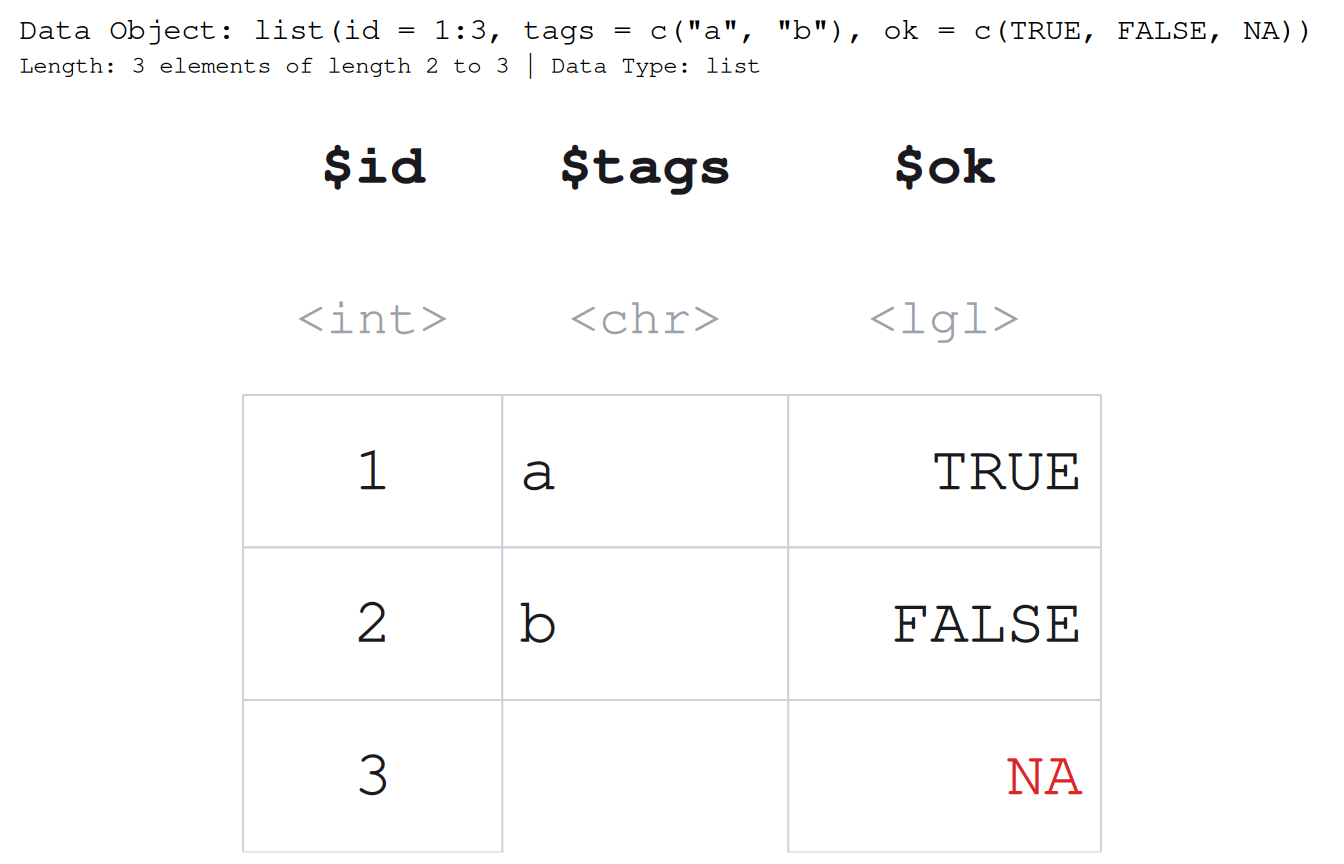

paint_list(list(id = 1:3, tags = c("a", "b"), ok = c(TRUE, FALSE, NA)))

A list of three elements drawn as three side-by-side columns headed $id, $tags, and $ok; id holds 1, 2, 3, tags holds a and b, and ok holds TRUE, FALSE, NA. The tags column is one cell shorter, leaving a ragged bottom edge because the elements do not share a length.

A data frame is just a list whose elements all share a length. Here is a small data frame, and here it is again as a bare list after as.list() strips the class.

df <- data.frame(x = c(1.5, 2.5, 3.5), grp = c("a", "b", "c"))
paint_data_frame(df)

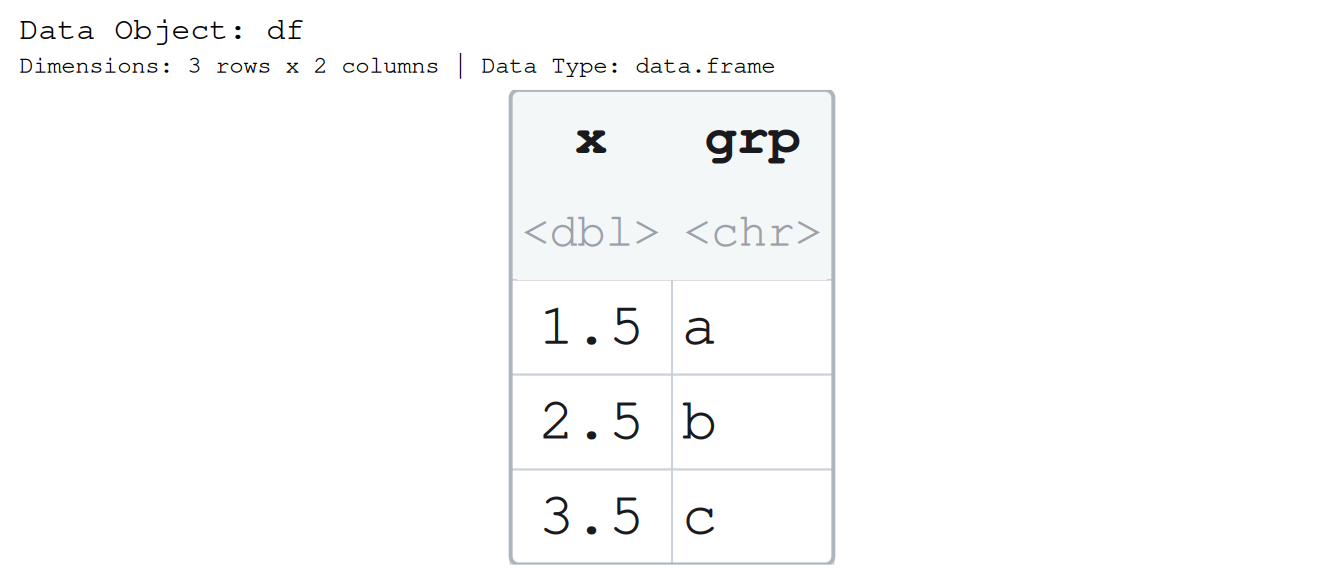

A small data frame drawn as a table with two columns, x holding 1.5, 2.5, 3.5 and grp holding a, b, c, each headed by its bare column name with the column type beneath; the elements share a length, so the table is a clean rectangle.

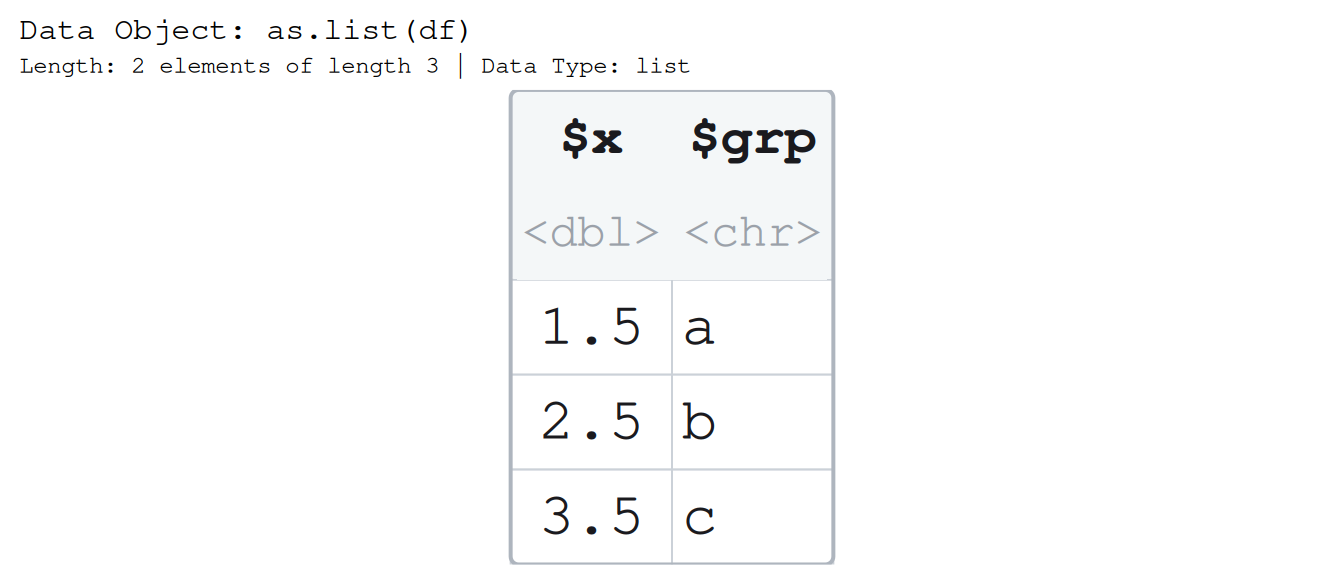

The same data drawn as a bare list after as.list(): two columns headed $x and $grp holding the same values 1.5, 2.5, 3.5 and a, b, c. Because the two elements share a length, the list draws the same clean rectangle a data frame does.

The two pictures are identical, the same columns and the same clean rectangle. The list draws that outline only because its elements share a length, and that shared length is exactly what makes a list a data frame. Shorten one element and the outline breaks with it, the ragged edge marking an object that is no longer a data frame.

broken <- as.list(df)
broken$x <- broken$x[1:2]
paint_list(broken)

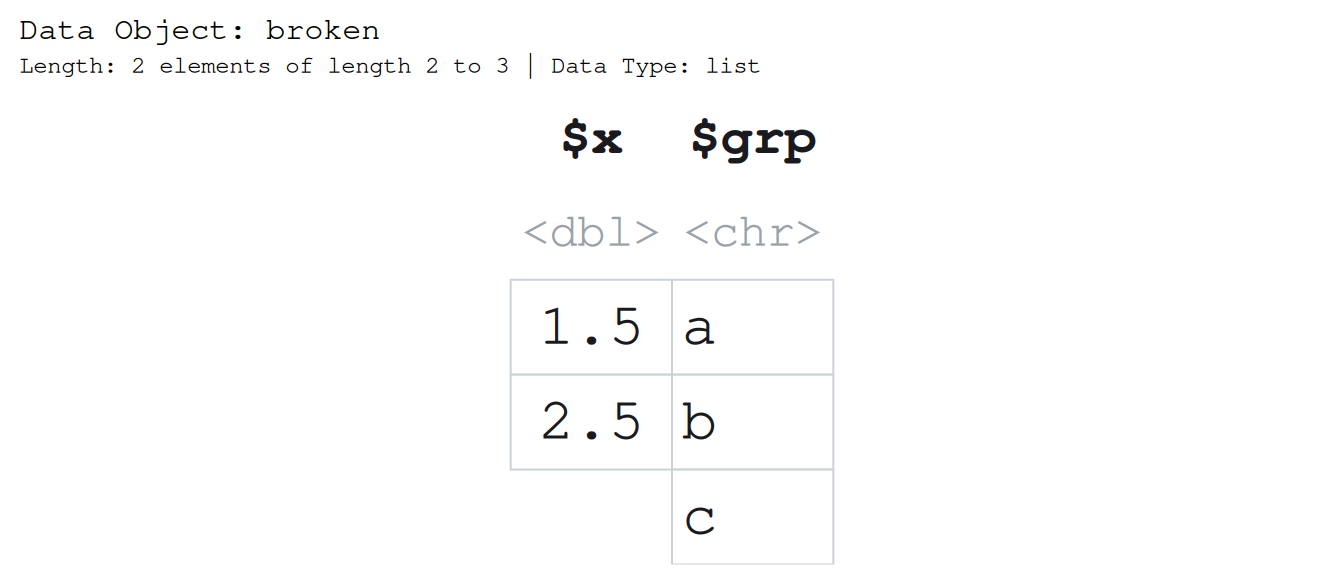

The same list after shortening x to two values, 1.5 and 2.5, while grp keeps three, a, b, c; the elements no longer line up, so the outline is gone and the bottom edge is ragged, the picture of an object that is no longer a data frame.

The rectangle is a convenience, though, not the truth of the object. A list is a bag of independent vectors that happen, here, to line up. Set gap and the columns move apart to say so, dropping the outline that marked them as a table.

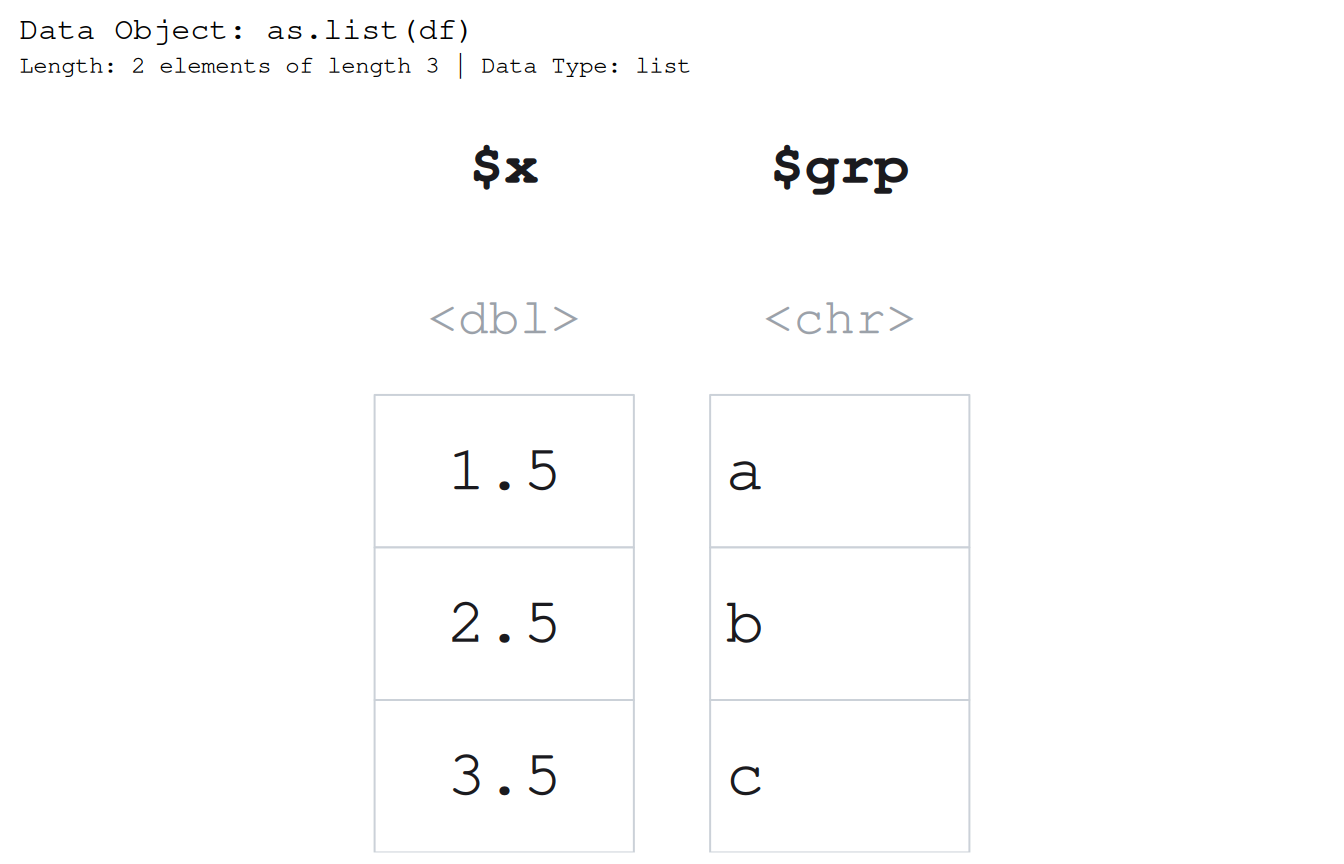

paint_list(as.list(df), gap = 0.5)

The same equal-length list drawn with gap = 0.5, which pushes the two columns x and grp apart into separate boxed vectors with clear space between them and no enclosing outline; the values are unchanged, but the picture now reads as two independent columns rather than one table.

The label under each cell is an accessor you can type. show_indices = "cell" writes the [[j]][i] subscript under every value, which settles the single-versus-double-bracket question by putting the working expression under the number it returns.

l <- list(a = c(10, 20, 30), b = c(1.5, 2.5))
paint_list(l, show_indices = "cell")

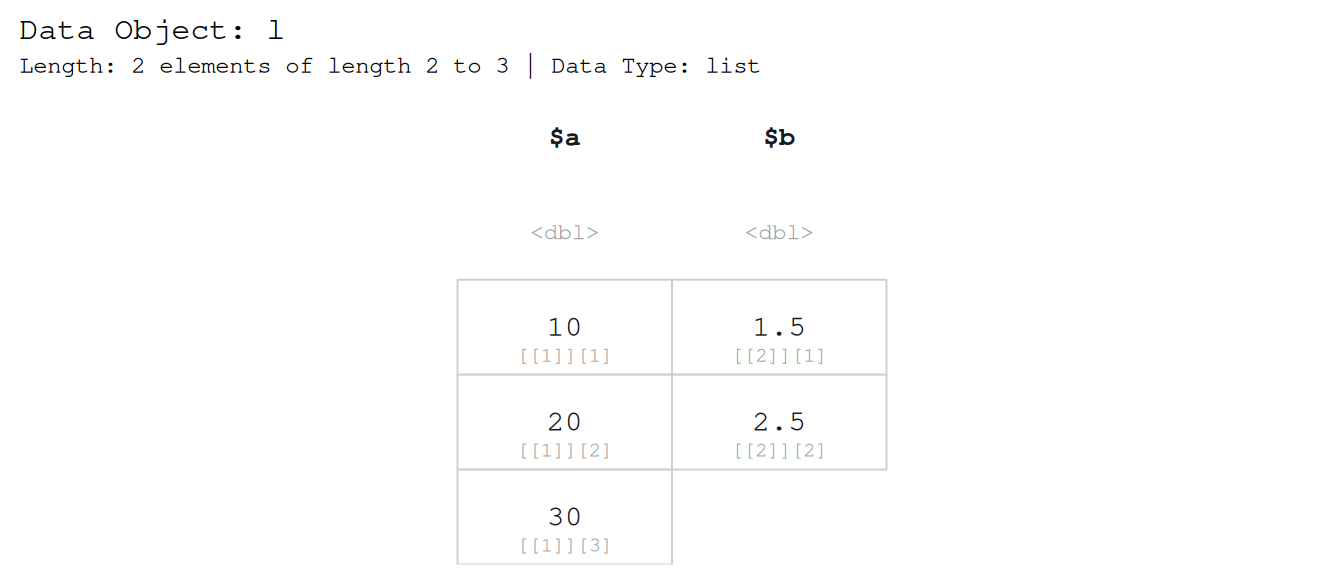

A list of two elements headed $a and $b, holding 10, 20, 30 and 1.5, 2.5, drawn with each cell labelled by its list accessor, double brackets to reach the element then a single bracket to pick the value, so [[2]][2] sits under 2.5 and [[1]][1] under 10.

Under the 2.5 it prints l[[2]][2], double brackets to reach into the list and a single bracket to pick the element.

paintr does not draw nesting, so a list inside a list collapses to a grey <list [2]> token rather than recursing.

Arrays

An array of three or more dimensions is a stack of matrices, and paint_array() lays that stack out as a row of blocks sharing one font size. (A 2-D array is just a matrix, and draws like one.)

paint_array(array(1:24, dim = c(2, 3, 4)), show_indices = "cell")

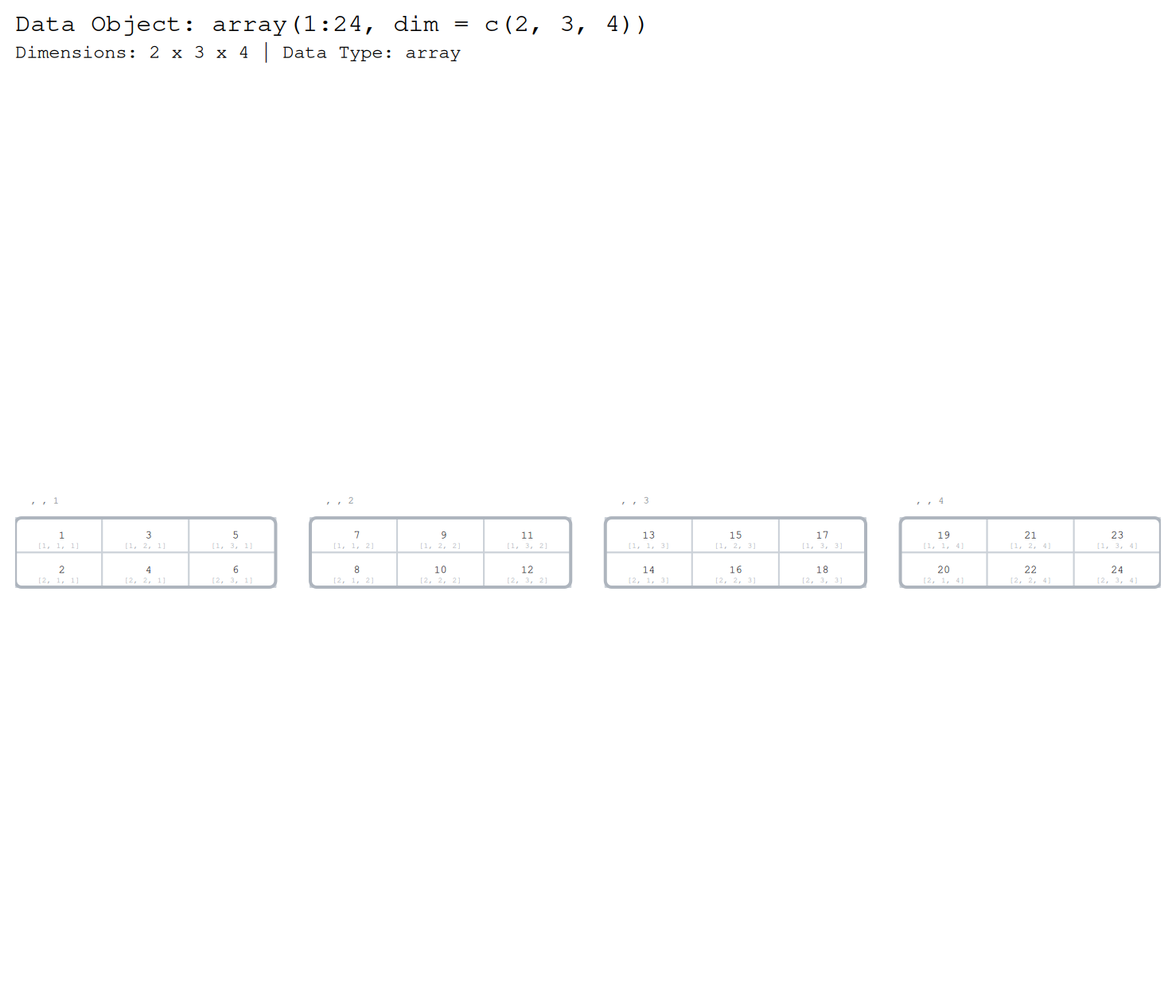

The numbers 1 through 24 drawn as a 2 by 3 by 4 array: four side-by-side blocks, each a 2 by 3 matrix slice sharing one font size and titled , , 1 through , , 4. Every cell is labelled with its full three-number subscript, from [1, 1, 1] to [2, 3, 4].

Each block is one slice, and the label under a cell is its full subscript, [2, 3, 4], a genuine 3-D index into the array. show_dimnames works as it does for a matrix, with an added "slice" lane. A genuinely huge array elides its middle, the same way the other structures do once they pass their size caps.

When a stack has more slices than sit comfortably in one row, slices_per_row wraps the blocks onto a grid, the same array laid out to stay readable. Each block keeps its own slice title, so wrapping only changes the reading order.

paint_array(array(1:24, dim = c(2, 3, 4)), slices_per_row = 2)

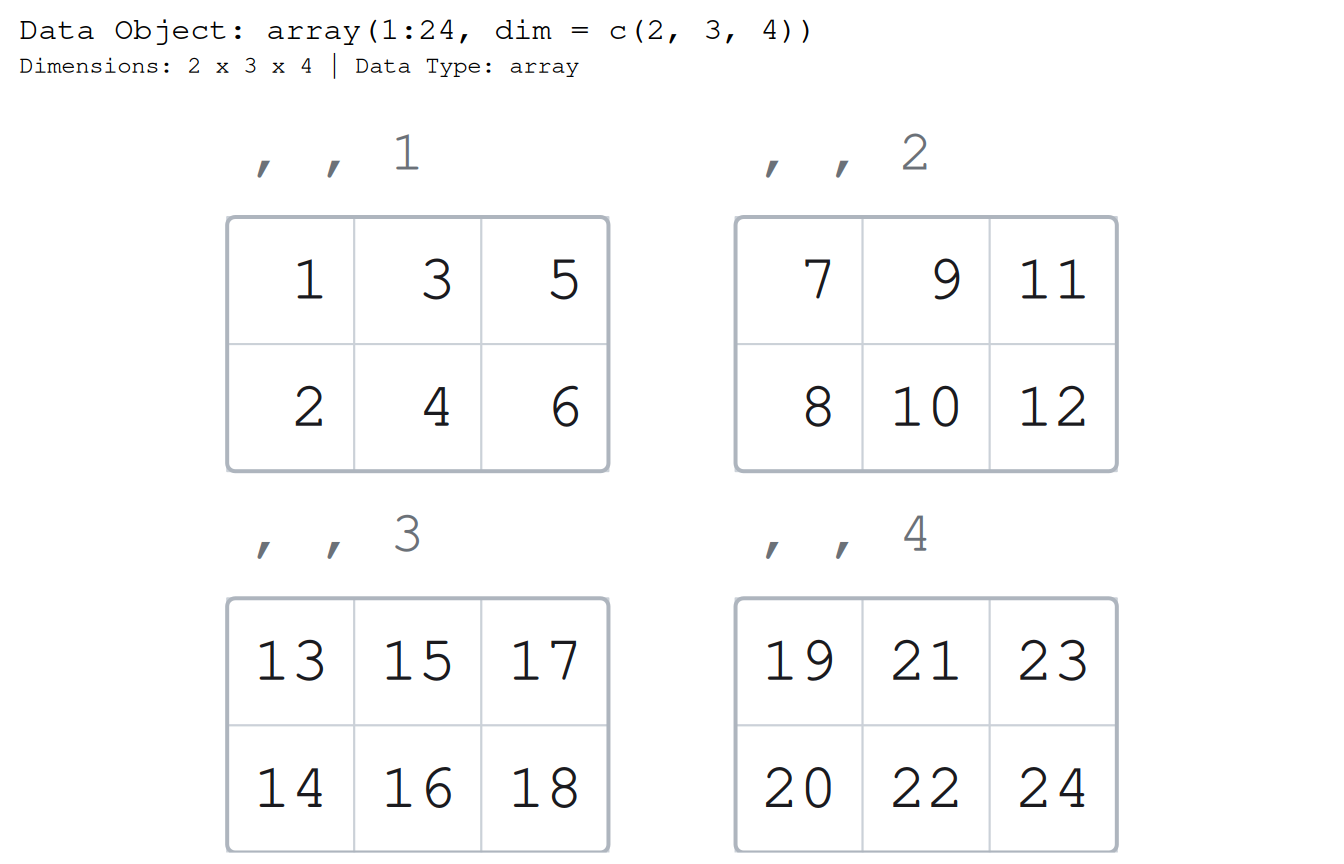

The same 2 by 3 by 4 array, now with slices_per_row = 2, so the four slice blocks are laid out in a two-by-two grid instead of a single row. The blocks are titled , , 1 through , , 4 in left-to-right, top-to-bottom reading order, and are larger and easier to read than in one cramped row.

Picking a legible device size

Most defaults fit a normal plot window, but a large structure drawn in full can shrink its text below the point where it is readable. paint_size() tells you the device size that keeps everything legible, in a form you can paste straight into a png() call or a knitr chunk header.

paint_size(head(mtcars))
#>  width height
#>    4.4    1.8

The answer is in inches by default. Pass units = "px" for a png() at a given dpi. When a picture would be too small, paintr warns and quotes you these exact numbers.

Where next

That is the whole tour, five structures, two backends, one consistent picture. From here:
