Visualize Data Inside of a Matrix

Generate a graph showing the contents of a matrix.

Usage

paint_matrix(
  data,
  show_indices = "none",
  highlight_area = NULL,
  highlight_color = "lemonchiffon",
  graph_title = paste0("Data Object: ", deparse(substitute(data))),
  graph_subtitle = NULL,
  sigfig = 3L,
  subtle_digits = c("insignificant", "rounded", "none"),
  max_chars = 12L,
  max_rows = 20L,
  max_cols = 15L,
  show_all = FALSE,
  fontsize = NULL,
  family = "mono",
  palette = NULL,
  show_dimnames = "all",
  max_name_chars = 8L,
  highlight_rows = NULL,
  highlight_columns = NULL,
  highlight_locations = NULL
)

gpaint_matrix(
  data,
  show_indices = "none",
  highlight_area = NULL,
  highlight_color = "lemonchiffon",
  graph_title = paste0("Data Object: ", deparse(substitute(data))),
  graph_subtitle = NULL,
  sigfig = 3L,
  subtle_digits = c("insignificant", "rounded", "none"),
  max_chars = 12L,
  max_rows = 20L,
  max_cols = 15L,
  show_all = FALSE,
  fontsize = NULL,
  family = "mono",
  palette = NULL,
  show_dimnames = "all",
  max_name_chars = 8L,
  highlight_rows = NULL,
  highlight_columns = NULL,
  highlight_locations = NULL
)

Arguments

data

An object that has the class of matrix.

show_indices

Display indices based on location. A character vector, so several kinds of index can be asked for at once. Values are: "none": no indices, "cell": matrix cell indices [i, j], "row": row indices [i, ] to the left of the matrix, "column": column indices [, j] above the matrix, and "all": row, column, and cell indices together. Default: "none".

Each value switches on its own lane, so c("row", "column") draws the row and the column indices but no cell indices, and "all" is the same as c("cell", "row", "column"). Combining "none" with anything else is contradictory, and the other values win: c("none", "row") draws row indices. An unknown value is an error, not a silent no-op.

highlight_area

Logical matrix the same shape as data, marking the cells to fill. A length-one logical is recycled. Default: NULL, which highlights nothing.

highlight_color

Color to use to fill the background of a cell.

graph_title

Title to appear in the upper left hand corner of the graph.

graph_subtitle

Subtitle to appear immediately under the graph title. NULL (the default) describes the data: its dimensions and its class. NA or "" draws no subtitle; any other string is drawn as given. The default reports the dimensions of the data itself, not of the drawing, so an elided matrix still reports all of its rows.

sigfig

Significant digits drawn in black. Digits past the sigfig-th are drawn in grey; nothing is discarded. Must be in 1:15.

subtle_digits

Which digits are drawn grey. "insignificant" (the default) greys everything past the sigfig-th significant digit; "rounded" greys only digits the rendering actually lost; "none" draws everything black.

max_chars

Strings longer than this are truncated with an ellipsis.

max_rows, max_cols

Elide the middle of the matrix when it has more rows or columns than this. The decision is made on the dimensions alone, with no device consulted, so the same object elides the same way on every device.

show_all

Draw every cell, however small the text becomes. Warns when the text falls below the legibility floor.

fontsize

Font size in points. NULL (the default) fits the text to the device.

family

Font family. "mono" by default.

palette

Colour palette for the drawing. One of "mint" (the default), "slate", "warm", or "classic" (the original look). Defaults to the "paintr.palette" option when unset. A named list of colours is also accepted.

show_dimnames

Which of the matrix's dimnames() to draw. A character vector, because dimnames() is a list with one slot per axis: "none", "row", "column", or "all" (the default). c("row", "column") is the same as "all", and an axis with no names draws no lane.

An index lane the caller asks for wins the axis it names: with show_indices = "row" the row lane draws [1, ], not the row names. To see both a name and an accessor, ask for show_indices = "cell" – the cell index is drawn inside the cell, so it composes with the names rather than competing for their lane.

max_name_chars

Longest a column name may be drawn before it is truncated. Default: 8. A matrix is one formatting unit, so every column of it is as wide as the widest: a long column name widens every cell in the picture. Row names sit in a gutter of their own, cost the values nothing, and are truncated at max_chars instead.

highlight_rows, highlight_columns, highlight_locations

Shorthand for highlight_area: instead of building a mask, name the rows, columns, or cell locations to fill and the mask is built for you with highlight_data(). So highlight_rows = 1 is exactly highlight_area = highlight_rows(data, 1), and the object need not be named twice. Give several at once to fill their union. Supplying highlight_area together with any of these is an error. Default: NULL.

Value

paint_matrix() invisibly returns the resolved cell table: a list with the components cells, fontsize, floored, u, x0, y0, usr, pin, graph_title, graph_subtitle, and – only when the drawing elides – note. graph_title and graph_subtitle are the chrome as it was actually drawn, so graph_subtitle is the resolved default rather than the NULL that was passed in. note holds the "# N more rows/columns" string and is present only when the drawing elides; it is absent otherwise. gpaint_matrix() returns a ggplot object.

Details

paint_matrix() draws on the current base graphics device. gpaint_matrix() returns a ggplot object.

The ggplot object is a shell

gpaint_matrix() returns a real ggplot object – + theme(), ggsave(), print() and knitr chunks all work – but its panel is drawn entirely by a custom grid grob, held in a single annotation_custom() over a meaningless 0..1 coordinate system. There is no aes(), no geom and no scale carrying any meaning, so:

ggplot_build() sees an empty layer.
+ scale_fill_*(), + scale_x_*() and friends have no effect on the drawing. Use highlight_area and highlight_color to fill cells.
+ geom_point() would draw onto the 0..1 coordinate system, not onto the cells.

This is not a shortcut around ggplot2. The cell text is fitted to the device at draw time, which no geom can do, because a layer is built long before the device size is known; and every number is drawn as two spans in two colors, which geom_text() cannot do at all. A custom grob is the only mechanism that can do either.

Examples

# Base graphics

# Visualize a 3x3
mat_3x3 = matrix(c(10, 200, -30, 40, 500, 30, 90, -55, 10), ncol = 3)
paint_matrix(mat_3x3)


# Show the cell indices
paint_matrix(mat_3x3, show_indices = "cell")


# Character data renders as the strings it contains.
paint_matrix(matrix(letters[1:6], nrow = 2))


# A dimnamed matrix labels its rows and columns with its names, like print().
mat_named = matrix(
  c(21, 6, 22.8, 4), nrow = 2, byrow = TRUE,
  dimnames = list(c("Mazda", "Datsun"), c("mpg", "cyl"))
)
paint_matrix(mat_named)


# The name above the column, the accessor under the value: both at once.
paint_matrix(mat_named, show_indices = "cell")


# An index lane wins the axis it names.
paint_matrix(mat_named, show_indices = "row")


# Or draw no names at all.
paint_matrix(mat_named, show_dimnames = "none")


# Highlight a row
mat_4x4 = matrix(seq_len(16), nrow = 4)
paint_matrix(
  mat_4x4, show_indices = "row",
  highlight_area = highlight_rows(mat_4x4, rows = 1)
)

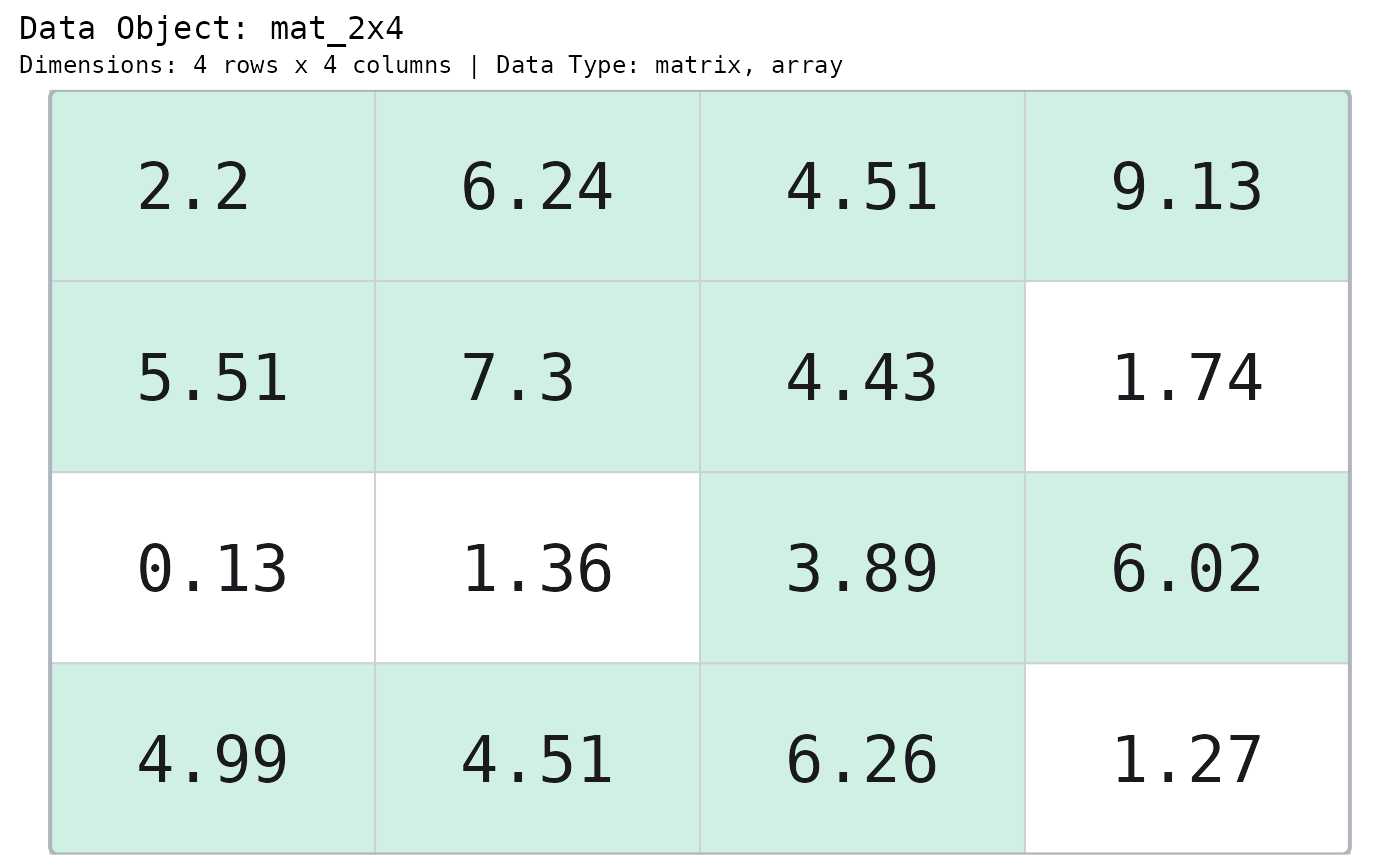

# Highlight values above 5
mat_2x4 = matrix(round(rnorm(16, 5, 2), 2), ncol = 4)
paint_matrix(mat_2x4, highlight_area = mat_2x4 > 2)

# ggplot2 graphics ----

# Visualize a 3x3
mat_3x3 = matrix(c(10, 200, -30, 40, 500, 30, 90, -55, 10), ncol = 3)
gpaint_matrix(mat_3x3)


# View the matrix without any highlighting
gpaint_matrix(mat_3x3, highlight_area = FALSE)


# Highlight a row
mat_2x2 = matrix(c(1, 2, 3, 4), nrow = 2)
mat_2x2_mask = matrix(c(TRUE, TRUE, FALSE, FALSE), nrow = 2)
gpaint_matrix(mat_2x2, highlight_area = mat_2x2_mask)


# Highlight values above 5
mat_3x5 = matrix(round(rnorm(15, 5, 2), 2), ncol = 5)
gpaint_matrix(mat_3x5, highlight_area = mat_3x5 > 2)
